Picture-in-Picture on Web

The Picture-in-Picture (PiP) feature allows you to create a floating player. This is commonly used to let the video remain playing on screen even if:

  • The user scrolls to another section of the page (causing the original player to no longer be visible).
  • The user sends the application to the background.
  • The user opens a new page within the same application.

THEOplayer distinguishes two flavors of Picture-in-Picture:

  • With in-app Picture-in-Picture, the visibility of the PiP window is contained to the inside of the app. In other words, it goes to background and foreground together with the application.
  • With out-of-app Picture-in-Picture, the visibility of the PiP window is not contained to the inside of the app. It can remain visible while the user navigates to other views, pages or apps.

Picture-in-Picture is a presentation mode of the player. As such, you can listen for a presentationmodechange event, or read the player's presentation mode, to find out what the presentation mode is at a given moment or to detect a change.

The Web SDK supports in-app Picture-in-Picture. Out-of-app Picture-in-Picture is not supported.

Usage​

Picture-in-Picture is enabled as soon as the player configuration contains a pip configuration, so there is no need for any additional code to enable it.

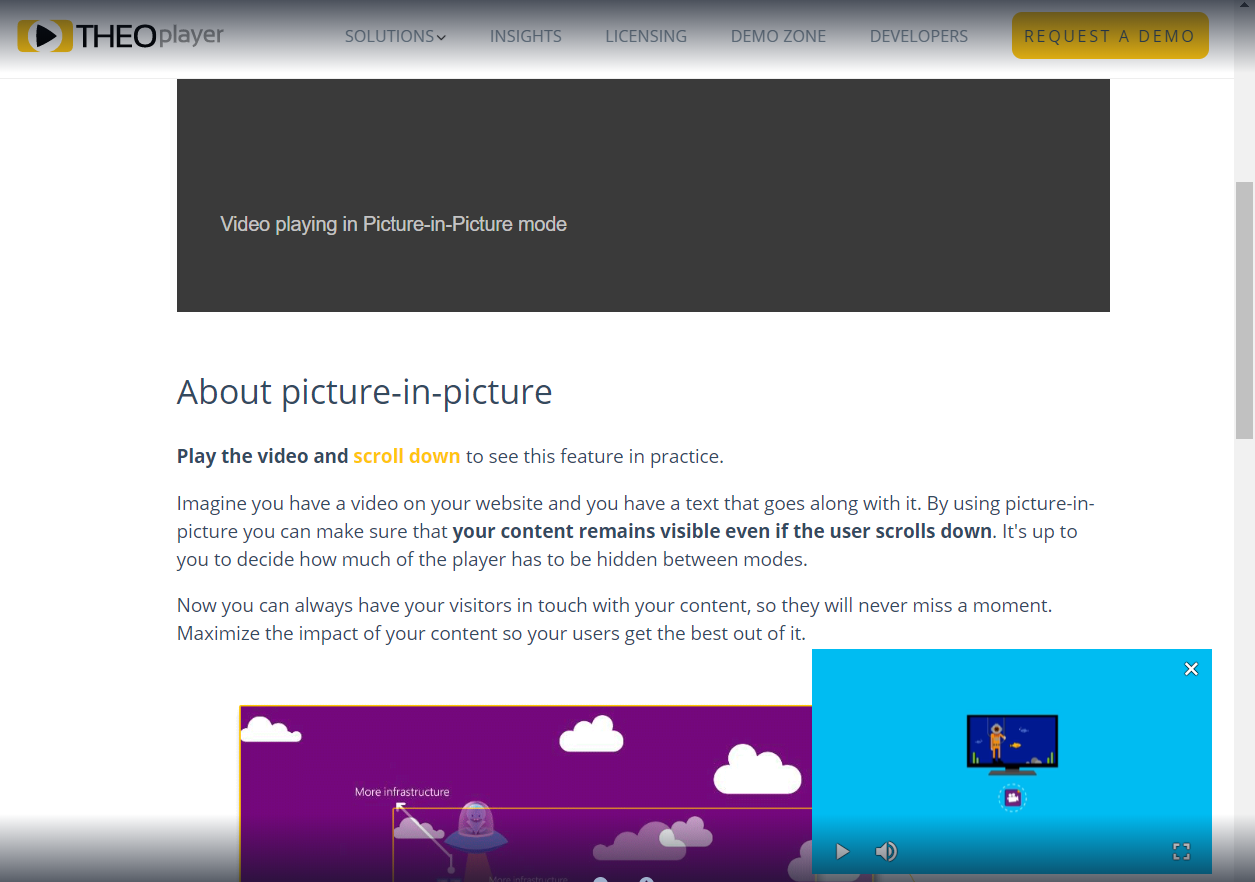

Picture-in-Picture

The PiP configuration has three properties:

  • position: (optional, possible values: "top-left", "top-right", "bottom-left", "bottom-right")
    The corner in which the player should be shown while in PiP mode. Defaults to the bottom right corner.

  • visibility: (optional, a number from 0 to 1)
    The maximum percentage of the original player position that should be visible to enable PiP automatically. If not configured, PiP can only be turned on by setting presentationMode to "picture-in-picture".

  • retainPresentationModeOnSourceChange: (optional, true or false)
    If set to true, the previous presentationMode is retained even as the source changes. It is set to false by default.

const playerConfig = {
  /* ... */
  pip: {
    visibility: 0.7,
    position: 'bottom-left',
    retainPresentationModeOnSourceChange: true,
  },
};

Remarks​

  • Support for native Picture-in-Picture (i.e. where the player is draggable) is experimental. While support is widely adopted, the feature is most notably not supported by Firefox.

Resources​
